| 1.系列代碼 Series Symbol | BS |
| 2.口徑 Size | 15:1/2" 20:3/4" |
| 3.O型圈材質 O-Ring Material |
E:三元乙丙EPDM |
| 4.泵體材質 Casing Material |
無代號No code:PP G:GFRPP A:CPVC P:PVDF |
| 5.馬力 Motor Power | 50:1/15HP(50W) 90:1/8HP(90W) 120:1/6HP(120W) |
| 6.頻率 Frequency |
5:50HZ 6:60HZ |
| 7.底座外形 Base Shape |
B:標準型 Standard Type F:方形 Square Y:圓形 Circle W:槽外式 Groove External T:特殊定做 Special Customized |
|

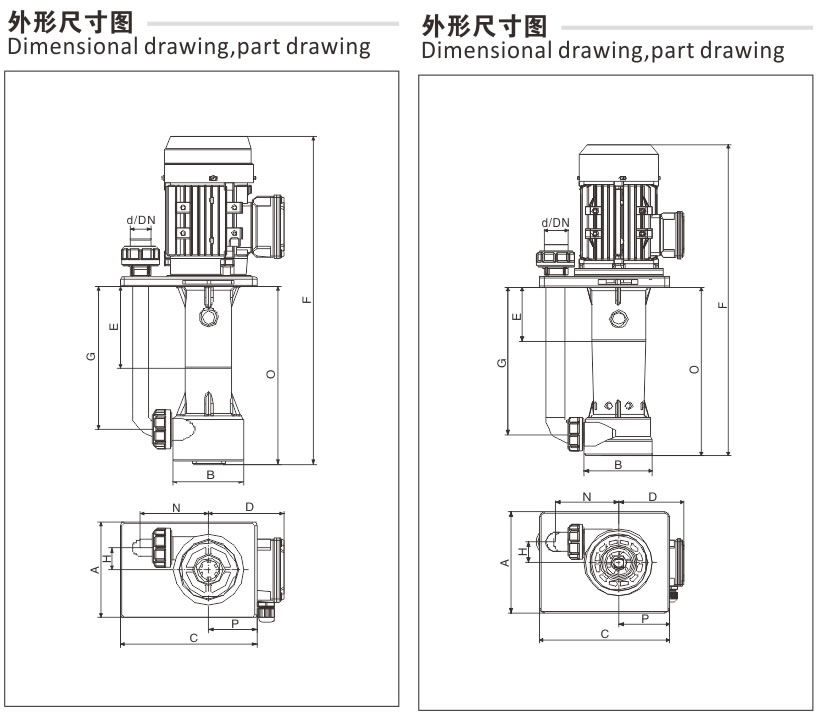

型號 Model |
尺寸Size(mm) | |||||
|
A |
B |
C | D | E | F | |
|
BS-15-50 |
120 |
88 |
170 |
94 |
102 |
407 |
|
BS-15-90 |
120 |
88 |
170 |
94 |
102 |
407 |
|
BS-15-120 |
120 |
88 |
170 |
94 |
102 |
407 |
|
型號 Model |
尺寸Size(mm) | |||||
|
G |
H |
N | P | O | ||
|
BS-15-50 |
177 |
27 |
85 |
60 |
220 |
|
|
BS-15-90 |
177 |
27 |
85 |
60 |
220 |
|
|
BS-15-120 |
177 |
27 |
85 |
60 |
220 |
|
|
型號 Model |
尺寸Size(mm) | |||||
|
A |
B |
C | D | E | F | |
|
BS-20-180 |
170 |
113 |
218 |
110 |
90 |
500 |
|
BS-20-250 |
170 |
113 |
218 |
110 |
90 |
523 |
|
BS-25-370 |
170 |
113 |
218 |
110 |
90 |
523 |
|
型號 Model |
尺寸Size(mm) | |||||
|
G |
H |
N | P | O | ||
|
BS-20-180 |
248 |
35 |
105 |
85 |
284 |
|
|
BS-20-250 |
248 |
35 |
105 |
85 |
284 |
|
|
BS-25-370 |
248 |
35 |
105 |
85 |
284 |
|
|

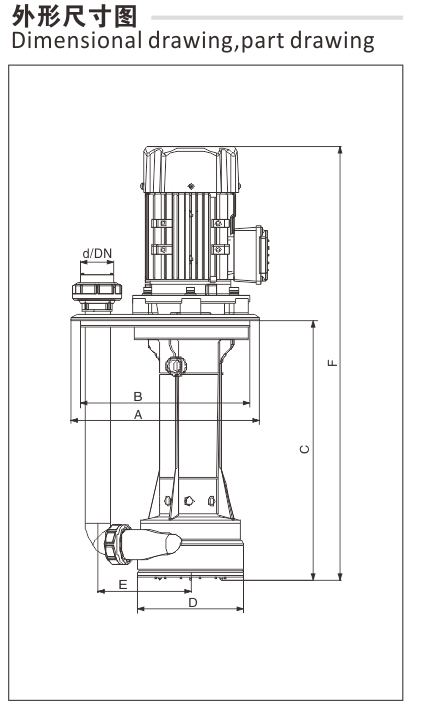

型號 Model |
尺寸Size(mm) | |||||
|
A |
B |
C | D | E | F | |
|
BS-32-550 |
300 |
270 |
411 |
168 |
148 |
687 |
|
BS-32-750 |
300 |
270 |
411 |
168 |
148 |
687 |
|
BS-32-1100 |
300 |
270 |
411 |
168 |
148 |
687 |
|
BS-40-1500 |
300 |
270 |
411 |
168 |
148 |
710 |
|
BS-40-2200 |
300 |
270 |
411 |
168 |
148 |
730 |
規格表：

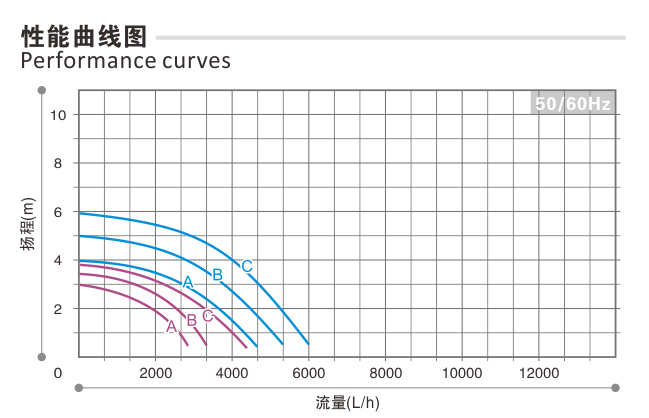

規格表一：
|
型號 Model |
口徑 Size(mm) |
功率Power | 50HZ | 60HZ |
重量 Weight(Kg) |
|||||
|
相數 Phase |
HP |
曲線 Curve |
全揚程 Total head(m) |
全流量 Total capacity(L/min) |
曲線 Curve |
全揚程 Total head(m) |
全流量 Total capacity(L/min) |
|||
|
BS-15-50 |
15 |
1 |
1/15 |
A |
3 |
50 |
A |
4 |
75 |
4 |
|
BS-15-50 |
15 |
3 |
1/15 |
A |
3 |
50 |
A |
4 |
75 |
4 |
|
BS-15-90 |
15 |
1 |
1/8 |
B |
3.5 |
60 |
B |
5 |
85 |
4.5 |
|
BS-15-90 |
15 |
3 |
1/8 |
B |
3.5 |
60 |
B |
5 |
85 |
4.5 |
|
BS-15-120 |
15 |
1 |
1/6 |
C |
3.8 |
70 |
C |
6 |
100 |
4.8 |
|
BS-15-120 |
15 |
3 |
1/6 |
C |
3.8 |
70 |
C |
6 |
100 |
4.8 |
規格表二：
|
型號 Model |
口徑 Size(mm) |
功率Power | 50HZ | 60HZ |
重量 Weight(Kg) |
|||||
|
相數 Phase |
HP |
曲線 Curve |
全揚程 Total head(m) |
全流量 Total capacity(L/min) |
曲線 Curve |
全揚程 Total head(m) |
全流量 Total capacity(L/min) |
|||
|
BS-20-180 |
20 |
1 |
1/4 |
A |
5 |
90 |
A |
6 |
110 |
8 |
|
BS-20-180 |
20 |
3 |
1/4 |
A |
5 |
90 |
A |
7 |
110 |
8 |
|
BS-20-250 |
20 |
1 |
1/3 |
B |
6 |
105 |
B |
7 |
130 |
8.5 |
|
BS-20-250 |
20 |
3 |
1/3 |
B |
6 |
105 |
B |
7 |
130 |
8.5 |
|
BS-25-370 |
25 |
1 |
1/2 |
C |
7 |
135 |
C |
8 |
150 |
9.5 |
|
BS-25-370 |
25 |
3 |
1/2 |
C |
7 |
145 |
C |
8 |
160 |
9.5 |

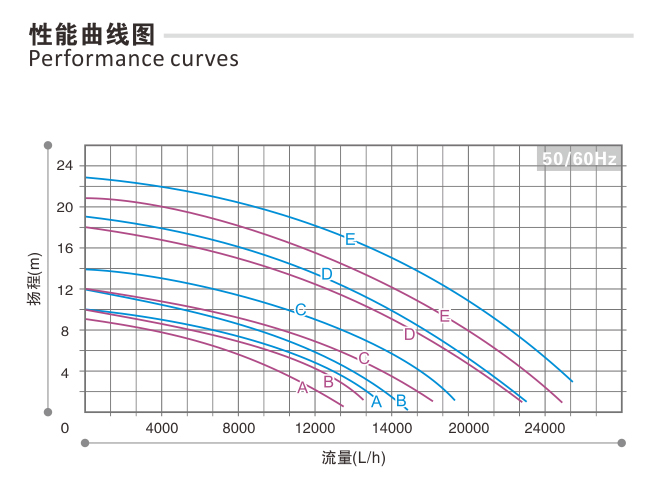

規格表三：
|
型號 Model |
口徑 Size(mm) |
功率Power | 50HZ | 60HZ |
重量 Weight(Kg) |
|||||
|
相數 Phase |
HP |
曲線 Curve |
全揚程 Total head(m) |
全流量 Total capacity(L/min) |
曲線 Curve |
全揚程 Total head(m) |
全流量 Total capacity(L/min) |
|||
|
BS-32-550 |
32 |
3 |
3/4 |
A |
9 |
230 |
A |
10 |
250 |
16 |
|
BS-32-750 |
32 |
3 |
1 |
B |
10 |
250 |
B |
12 |
280 |
17.5 |
|
BS-32-1100 |
32 |
3 |
1.5 |
C |
12 |
310 |
C |
14 |
330 |
20 |
|
BS-40-1500 |
40 |
3 |
2 |
D |
18 |
380 |
D |
19 |
380 |
22 |
|
BS-40-2200 |
40 |
3 |
3 |
E |
21 |
410 |
E |
23 |
450 |
24 |
