| 1.系列代碼 Series Symbol | SM |
| 2.入口口徑 Suction size | 4:40A(11/2") 5:50A(2") 6:65A(21/2") |
| 3.出口口徑 Discharge Size |
4:40A(11/2") 5:50A(2") |
| 4.馬力 Motor Power | 0：1/2HP(0.37kW) 1：1HP(0.75kW) 2：2HP(1.5kW) 3：3HP(2.2kW) 5：5HP(3.75kW) |
| 5.配管形式 Type of Connection | F: 法蘭Flange U: 由任Union |
| 6.泵體材質 Casing Material |
G: GFRPP C: CFRPP P: PVDF E: CFRETFE |
| 7.泵軸材質 Shaft Material |
A:高鋁陶瓷 CERAMIC S:碳化硅 SSIC |
| 8.軸承材質 Bearing Material |
A: 高鋁陶瓷CERAMIC C: 碳CARBON |
| 9.O型圈材質 O-Ring Material |
E: 三元乙丙EPDM |
| 10.葉輪代碼 Code of impeller |
5：50HZ 6：60HZ |
| 11.電機類型 Motor type |
無標志No code: TEFC室內型Indoor type |
| 12.特殊代碼 Special code |
無標志 No code: 標準型 Standard type S:特殊型 special type |
產品參數：
| 編號 NO. | 名稱 Description | ACE | ACV | ARE | ARV | AAE | AAV | SSE | SSV |

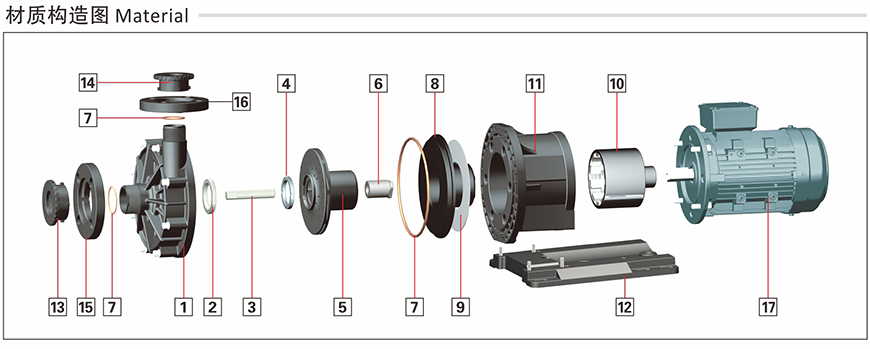

| 1 | 前蓋 Pump casing | GFRPP/ CFRPP/ PVDF/ CFRETFE | |||||||
| 2 | 前止推環 Front thrust ring | CERAMIC | SSIC | ||||||
| 3 | 泵軸 Shaft | CERAMIC | SSIC | ||||||
| 4 | 耐磨環 Wear resistant ring | PTFE | SSIC | ||||||
| 5 | 葉輪 Impeller unit | GFRPP/ CFRPP/ PVDF/ CFRETFE | |||||||
| 6 | 軸承 Bearing | CARBON | PTFE | CERAMIC | SSIC | ||||
| 7 | O形圈 O-Ring | EPDM | VITON | EPDM | VITON | EPDM | VITON | EPDM | VITON |
| 8 | 后蓋 Rear casing | GFRPP/ CFRPP/ PVDF/ CFRETFE | |||||||
| 9 | 后蓋背板 Backup plate | SUS304 | |||||||
| 10 | 驅動磁鐵 Drive magnet | Nd-Fe-B | |||||||
| 11 | 支架 Frame | GFRPP | |||||||
| 12 | 底座 Base frame | GFRPP/ SUS304 | |||||||
| 13 | 入口法蘭連接件 Inlet flange adapter | GFRPP/ CFRPP/ PVDF/ CFRETFE | |||||||
| 14 | 出口法蘭連接件 Outlet flange adapter | GFRPP/ CFRPP/ PVDF/ CFRETFE | |||||||
| 15 | 入口活動法蘭 Inlet adjustable flange | GFRPP/ PVDF | |||||||
| 16 | 出口活動法蘭 Outlet adjustable flange | GFRPP/ PVDF | |||||||
| 17 | 馬達 Motor | ||||||||

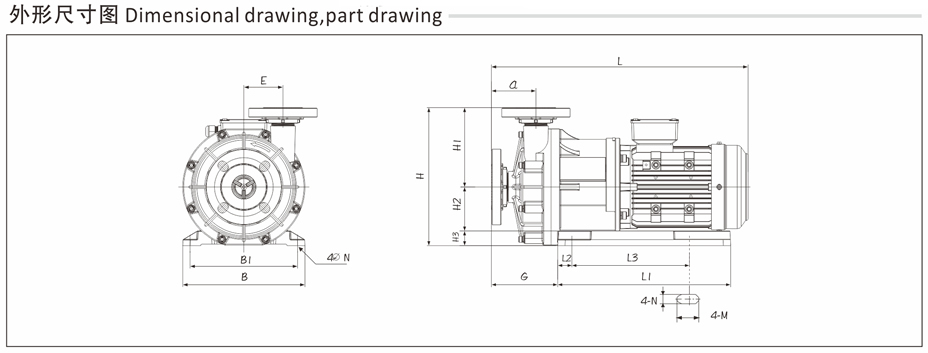

| 型號 | 尺寸 Size(mm) | 法蘭 Flange(mm) | |||||||||||||||
| A | B | B1 | E | G | H | H1 | H2 | H3 | L | L1 | L2 | L3 | N | M | Inlet | Outlet | |
| BAX-440 | 87.5 | 225 | 195 | 54 | 137 | 225.5 | 130.5 | 70 | 25 | 430.5 | 203 | 30 | 138 | 12 | 22 | 40 | 40 |
| BAX-441 | 105.5 | 72 | 153.5 | 257.5 | 142.5 | 90 | 491.5 | ||||||||||
| BAX-542(H) | 91 | 250 | 220 | 80 | 136 | 282.5 | 162.5 | 90 | 30 | 525 | 330 | 27 | 246 | 14 | 38 | 50 | |
| BAX-552(H) | 50 | ||||||||||||||||
| BAX-543(H) | 40 | ||||||||||||||||
| BAX-553(H) | 50 | ||||||||||||||||
| BAX-545 | 131 | 324.5 | 132 | 592 | 40 | ||||||||||||
| BAX-555 | 50 | ||||||||||||||||
| BAX-653 | 92 | 331 | 169 | 539 | 65 | 40 | |||||||||||
| BAX-655 | 598 | 65 | 50 | ||||||||||||||

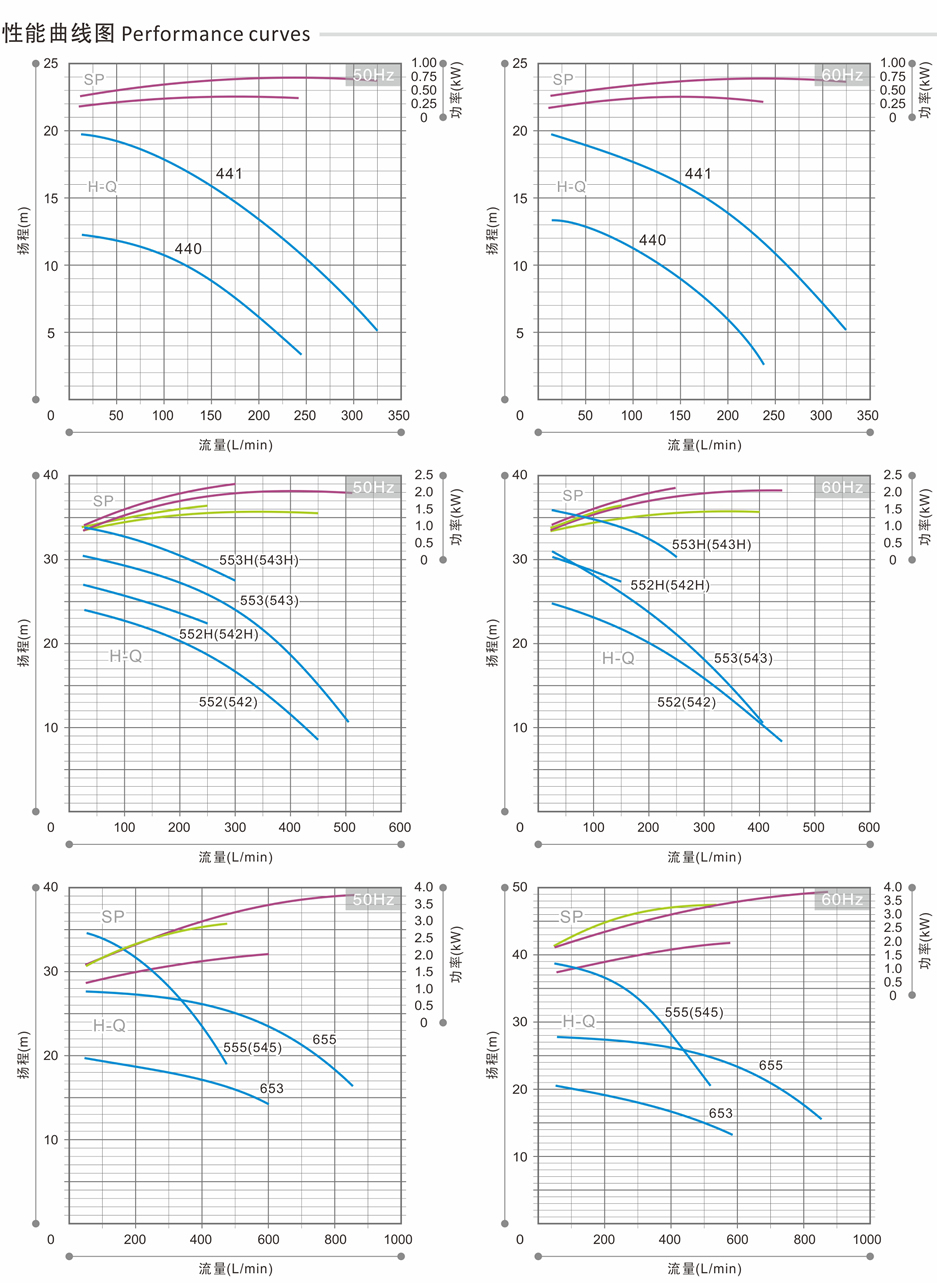

規格表：
|
型號 Model |
入口×出口 Inlet×Outlet |
頻率 Frequency (HZ) |
額定流量 Rated Capacity (L/min) |
額定揚程 Rated Head (m) |
最大流量 Max. Capacity (L/min) |
最高揚程 Max. Head (m) |
馬達輸出功率 Motor output (kW) |
| BAX-440 | 40×40 | 50HZ | 100 | 10.5 | 240 | 12 | 0.37 |
| 60HZ | 11.5 | 240 | 13 | ||||
| BAX-441 | 40×40 | 50HZ | 150 | 15.5 | 330 | 19 | 0.75 |
| 60HZ | 15.5 | 330 | 19 | ||||
| BAX-542 | 50×40 | 50HZ | 200 | 21 | 450 | 24.5 | 1.5 |
| BAX-552 | 50×50 | 60HZ | 21 | 25.5 | |||
| BAX-542H | 50×40 | 50HZ | 100 | 26.5 | 250 | 27.5 | 1.5 |
| BAX-552H | 50×50 | 60HZ | 29 | 150 | 30.5 | ||
| BAX-543 | 50×40 | 50HZ | 250 | 26 | 510 | 31 | 2.2 |
| BAX-553 | 50×50 | 60HZ | 26 | 31 | |||
| BAX-543H | 50×40 | 50HZ | 150 | 32 | 300 | 34 | 2.2 |
| BAX-553H | 50×50 | 60HZ | 34 | 250 | 36 | ||
| BAX-545 | 50×40 | 50HZ | 250 | 31 | 500 | 35 | 3.75 |
| BAX-555 | 50×50 | 60HZ | 35 | 39 | |||
| BAX-653 | 65×50 | 50HZ | 450 | 16 | 600 | 20 | 2.2 |
| 60HZ | 16 | 20 | |||||
| BAX-655 | 65×50 | 50HZ | 500 | 25 | 860 | 27.5 | 3.75 |
| 60HZ | 25 |
